If you are using the Object Palette the button for the Spreadsheet is. Push Add to create a new Case Study.

What Is Aspen Hysys Chemengguy

Create a new case.

How to add spreadsheet in hysys. Run Excel Macro to change HYSYS inlet condition following each case 3. Finally Appendix N contains the bibliography for the preface four chapters and thirteen appendices. Open your simulation case.

Run Excel Macro to export HYSYS stream properties to Excel Table 5. Alternatively you could set up a spreadsheet calculation in HYSYS to calculate water content in lbMMSCF units by importing the water mass flowrate and stream flowrate in MMSCFD. Learn to use spreadsheet and adjust tools to meet specifications of your under-study separation process in Aspen HYSYS.

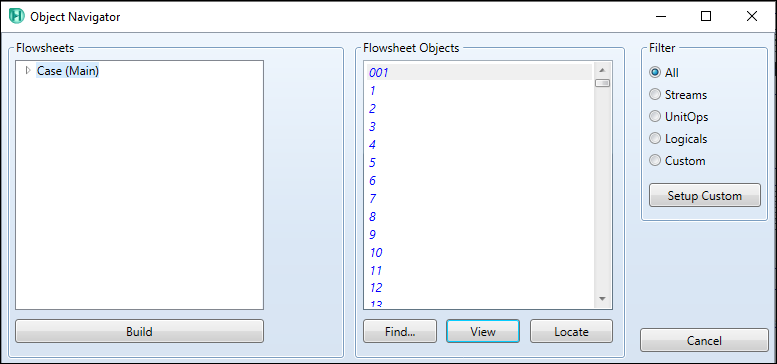

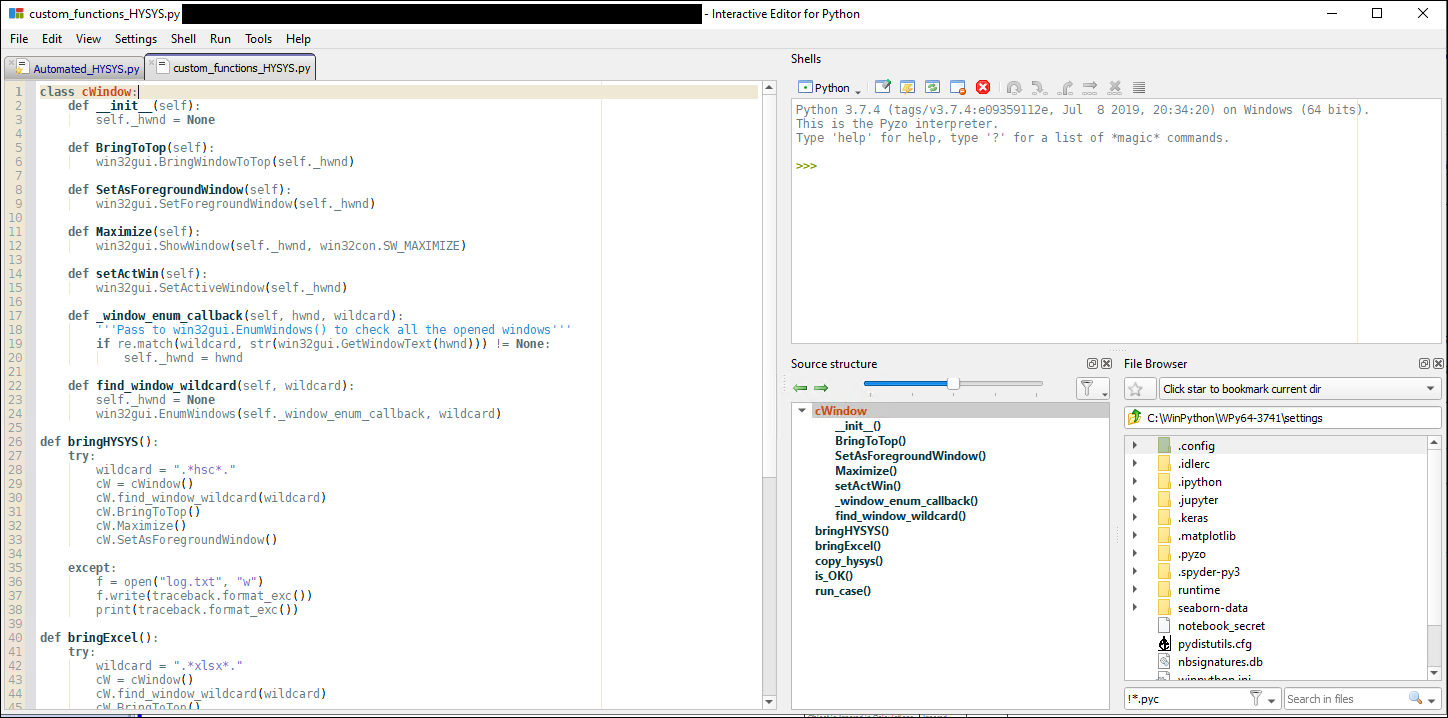

Proceed in next Python code to save HYSYS screenshot save HYSYS file as a new case and. Click on the Parameters tab and change the Number of Columns to at least 5 and the Number of Rows to at least 11. How to Add Spreadsheet 1st method 39.

Double click to open. Switch to the Case Studies Page. How to Add Spreadsheet 2nd method click Double click 40.

Importing data from Aspen HYSYS into Excel. Add a couple of components. Select the Aspen Properties Databanks radio button and then add a component list.

Manually check whether the simulation result is converged and nothing strange showing up 4. Some of the important web links that appeared in. Spreadsheet Connections Tab Used to Add Delete and Edit Imported and Exported variable 42.

Well as summarize the results add a Spreadsheet to the simulation. Open a new excel sheet. Remember our goal is to vary the reactor temperature and reactor size done here by varying what percentage of 300 cubic feet need actually be filled with liquid and observe the.

Higher and Lower heating values can be calculated using the Gas Properties extension or by adding the corresponding gas property correlation to a HYSYS stream. Please try the following steps to link Hysys to Excel. From the Model Palette add a Spreadsheet.

Double click the Spreadsheet icon in PFD then appears table like picture below after click Spreadsheet tab - Type the variables that corresponds with calculation in column A. Open the Property view if it isnt already. Copy the value to be linked to excel for example the mass density you can use CtrlC go to the new excel sheet click on the right button of the mouse and select special paste.

- Right click B2 choose import variable. Below is the description of how to create a simple case with electrolytes. Click on the Spreadsheet tab set up text fields that look like the.

Start by pressing Add Import and making the selections in the window that appears as shown. Change the name to Steam Cycle Summary. Use spreadsheet and case study in hysys.

We begin on the Connections Page by importing the variables we wish to work with. In the HYSYS Gas Processing Tutorial they use the Mole Balance to create a stream with the same composition and flow as a process stream but then they give the new stream a different pressure and a vapor fraction of 1 to see what the streams dew point would be remember when you specify vapor fraction of 1 or 0 HYSYS assumes you want. Once the data you need is in the hysys environment you.

Conversion as the variable go ahead and change the Variable Description at the bottom to just Conversion. I no longer have access to Hysys but I was always able to connect internal Hysys Spreadsheets to external excel spreadsheest fairly easily. M contains the economic model and its HYSYS spreadsheet to determine the net profit for the styrene monomer flowsheet.

Run Python code to Open HYSYS file and Excel file 2. HYSYS is a powerful software for chemical processes simulation that includes rigorous data for a. This tutorial is focused on removal o.

H2O HCL CO2 NAOH CH4 for example Close the component list and go. Pick the Spreadsheet as the Object and B6. Aspen Properties is part of the base HYSYS license.

Example Using Spreadsheet in Simulation 41. How to define a variable not available in HYSYS and relate the other process variable with it using Spreadsheet.
